The Memotech MTX Series

Memotech Photos - Multi-Effect Video Wall



A couple of Video Wall components were advertised on eBay UK in August 2024. The system was incomplete and the seller knew nothing about them at least, not until I gave him a few pointers.



Multi-Effect Video Wall Pictures - courtesy of eBay

The first item listed was described as a "MEMOTECH MTX2000 Vintage Computer - No Keyboard - Like MTX512 or MTX "

Although it was in the same MTX2000 case as my own MTX2000 VideoWall computer, this item did not include all of the MTX2000 hardware. Despite that, its rarity and Jim's desire to acquire it, saw the wining bid reach £720!

The system was made up of a MTX 4000-05 computer board, a ROM board (without ROMs fitted), a cut down RS232 interface board with the FDX interface cut off and a DC power supply replacing the usual MTX power conditioning components.

The internal 3.5" floppy drive and controller that were intended to be installed in a "proper" MTX 2000 system unit were not installed and the external MTX keyboard was missing..

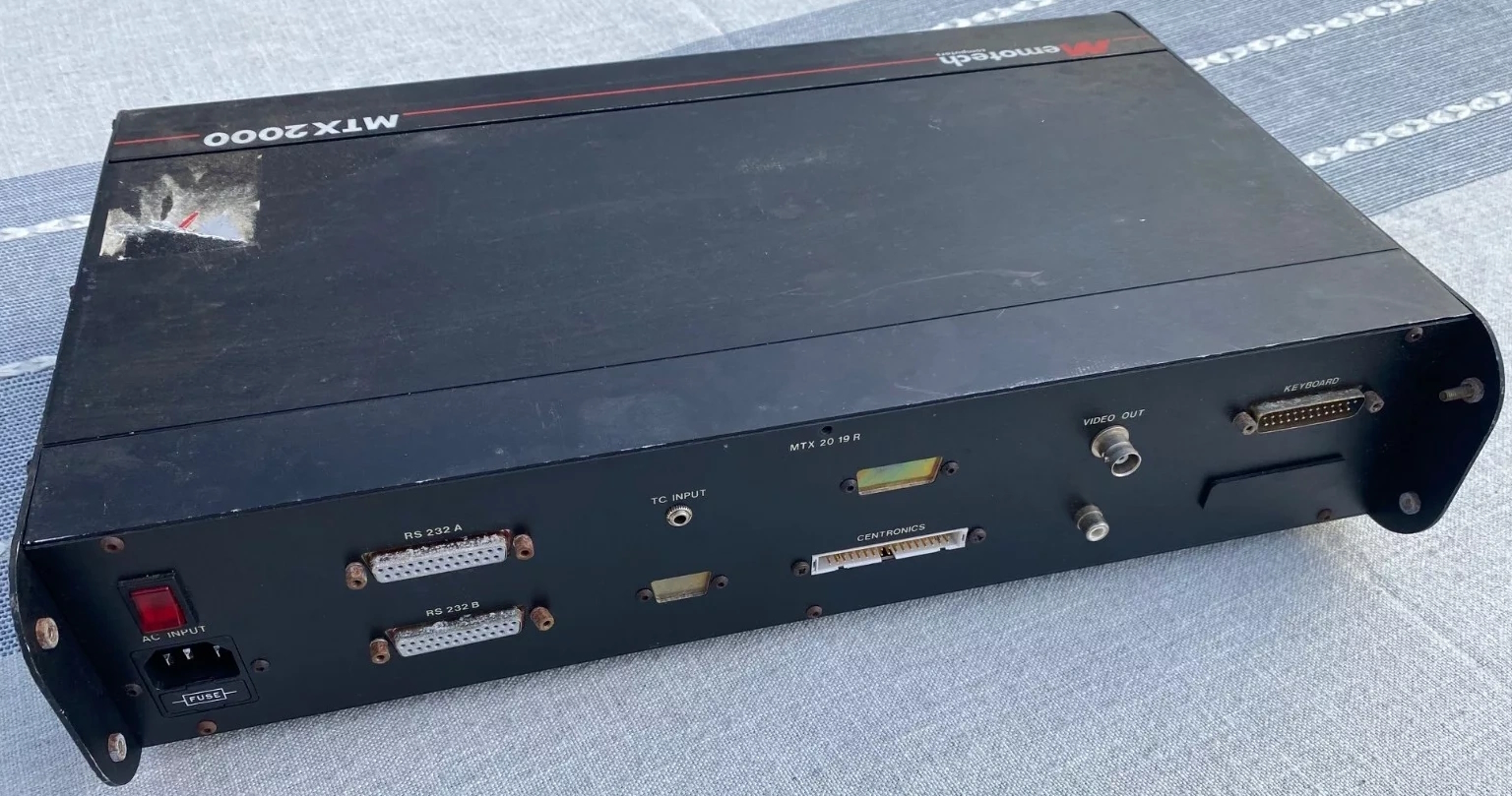

The rear of the unit was fitted with the same VideoWall ports as mine, i.e., the connector for the external keyboard, video output, centronics interface for the DDFS unit(s), RS232 connections and the time-clock input.
The unit had a label on the bottom with the product ID "2019R" and serial number "2034".
The seller included a screenshot of the video output as shown here. It seems that the system has dropped to "PANEL", more than likely due to the PAL memory decoder being configured to boot the system from the missing Video Wall ROMs. The display is corrupted, likely due to a VRAM failure. Both problems are relatively easy to resolve.
The second item, listed at the same time, was described as "MEMOTECH PAL DEC 15 - RGB Video Box for MTX2000". This was a video decoder unit for a medium resolution Video Wall system. With its very limited usefulness, it went for £117.
This unit took a composite video PAL input and generated 4 RGB outputs for processing by the DDFS units. It also featured a connection for an external "Decoder Adjust"[ment] tool to adjust the picture quality of the outputs with adjustments for brightness, contract and colour.
The seller included a photo of the internals of the unit, showing the same Video Decoder and Distribution Amplifier boards that are fitted to my Decoder boxes.
Label from the bottom of the unit

A couple of months later, in late October, the seller found the missing DDFS units and listed them on eBay UK too.

Described as "Memopix Videowall 1500 MID RES - Part of Memotech CRT Video Wall System?", these were the major components missing from the complete system, albeit that the multitude of required cables was not included. Both were included in the lot. These components were the most valuable part of the system back in the day, but despite that, with their limited use today, they went for £245, with Jim grabbing them at the end of the auction.
View from above one of the units, confirming that they were components of a Mid-Res 1500 system.
The rear of the units, showing the input connections from the Decoder module, the centronics connections from the MTX2000 or other controller and the RGB outputs to the monitors.
Label from the bottom of one of the units
Label from the bottom of the other
A end--user label from one of the units, "Telstar Roadshow", suggesting that this system was operated as a mobile unit from some kind of audio/video roadshow. This is a similar application to one of my systems - I wonder if the components were originally installed in a similar flight case as mine?
